【WANHUA】CLARNATE®FR3730 BK 08011
share
Clarnate® FR3730 BK 08011
Features: Medium viscosity, Flane retardant
Uses: E&E
Appearance: Colors available

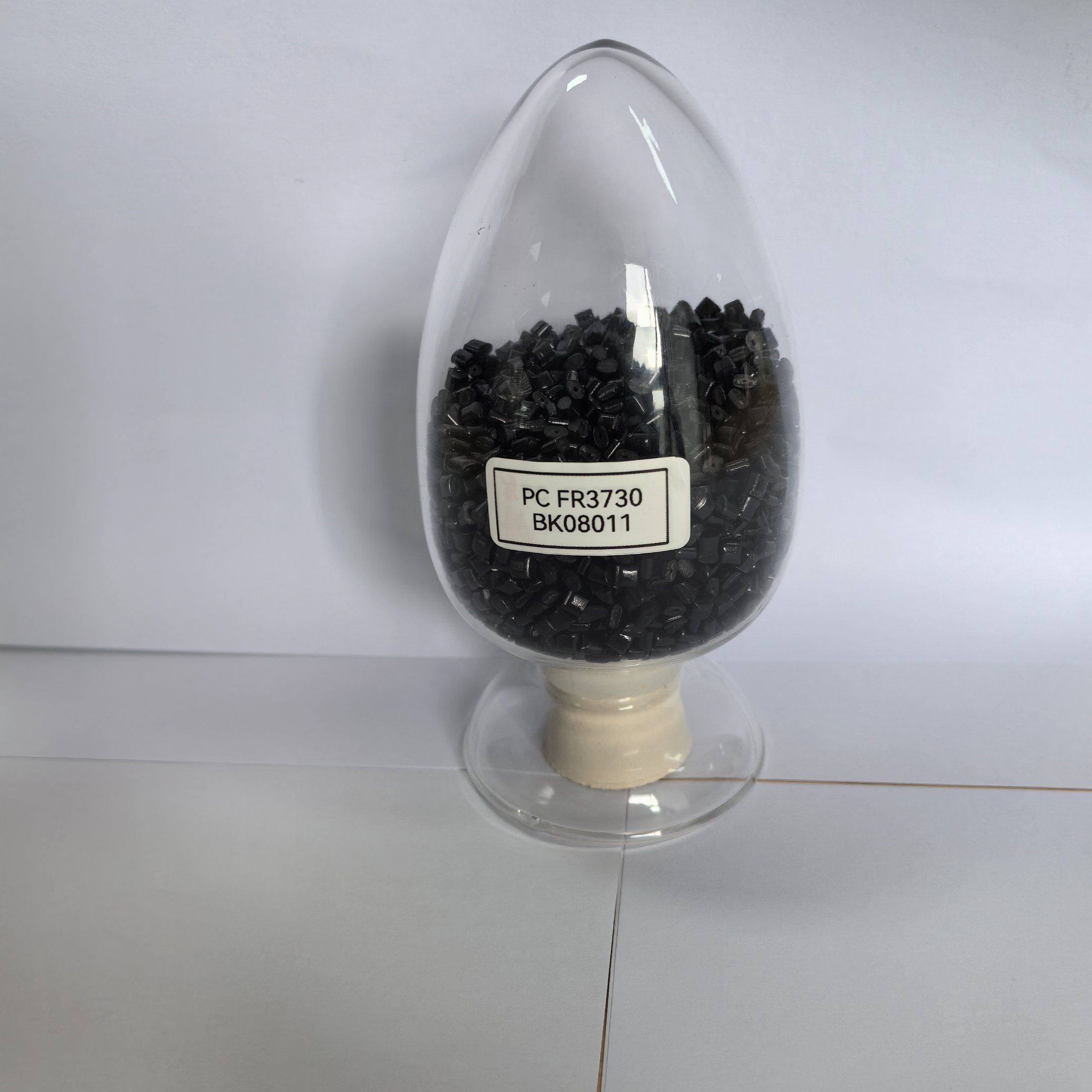

Forms: Pellets
Processing Method: Injection molding
Features: Medium viscosity, Flane retardant
Uses: E&E
Appearance: Colors available
Forms: Pellets
Processing Method: Injection molding
Detail
Properties
| Property Name | Value | Unit |
|---|---|---|
| Appearance | Granule | -- |
| Physical State | Solid | -- |
| Relative density (water = 1) | 1.18-1.20 | -- |
| Auto-Ignition Temperature | >550 | °C |
| Decomposition Temperature | >380 | -- |
| Melting point/freezing point | >240 | °C |
| Flash Point | >522 | °C |
| Molecular Weight | 516.58 | g/mol |
| Solubility in Water | Immiscible | -- |
Specifications
| Specification Name | Value | Unit | Test Method | Test Condition |
|---|---|---|---|---|
| Melt Flow Index at 300°C/1.2 Kg | 10 | g/10min | ASTM D1238 | -- |
| Mold Shrinkage | 0.4 - 0.7 | % | ASTM D955 | -- |
| Water Absorption at 23°C, 24h | 0.2 | % | ASTM D570 | -- |
| Density | 1.2 | g/cm3 | ASTM D792 | -- |
| Stress at Break at 50 mm/min | 65 | MPa | ASTM D638 | -- |
| Tensile Modulus at 1 mm/min | 2150 | MPa | -- | -- |
| Strain at Break at 50 mm/min | 100 | % | -- | -- |
| Flexural Strength at 2 mm/min | 93 | MPa | ASTM D790 | -- |
| Flexural Modulus at 2 mm/min | 2200 | MPa | -- | -- |
| Izod Notched Impact Strength at 23 °C | 740 | J/m | ASTM D256 | -- |
| Heat Distortion Temp. at 1.82 MPa; 3.2 mm | 126 | °C | ASTM D648 | -- |
| Vicat Softening Temp. at 120 °C/h; 50 N | 146 | °C | ASTM D1525 | -- |
| Flame Rating at ≥3.0 mm | V-0 | -- | UL 94 | -- |
| Glow wire test (GWFI) at 1.5 mm | 875 | °C | IEC 60695-2-12 | -- |
| Glow wire test (GWFI) at 3.0 mm | 900 | °C | -- | -- |
| Glow wire test (GWIT) at 1.5 mm | 850 | °C | -- | -- |
| Glow wire test (GWIT) at 3.0 mm | -- | °C | IEC 60695-2-13 | -- |
| Drying Temperature | 120 | °C | -- | -- |
| Drying Time | 3 - 4 | h | -- | -- |
| Injection Temperature | 280 - 310 | °C | -- | -- |
| Mold temperature | 70 - 100 | °C | -- | -- |
